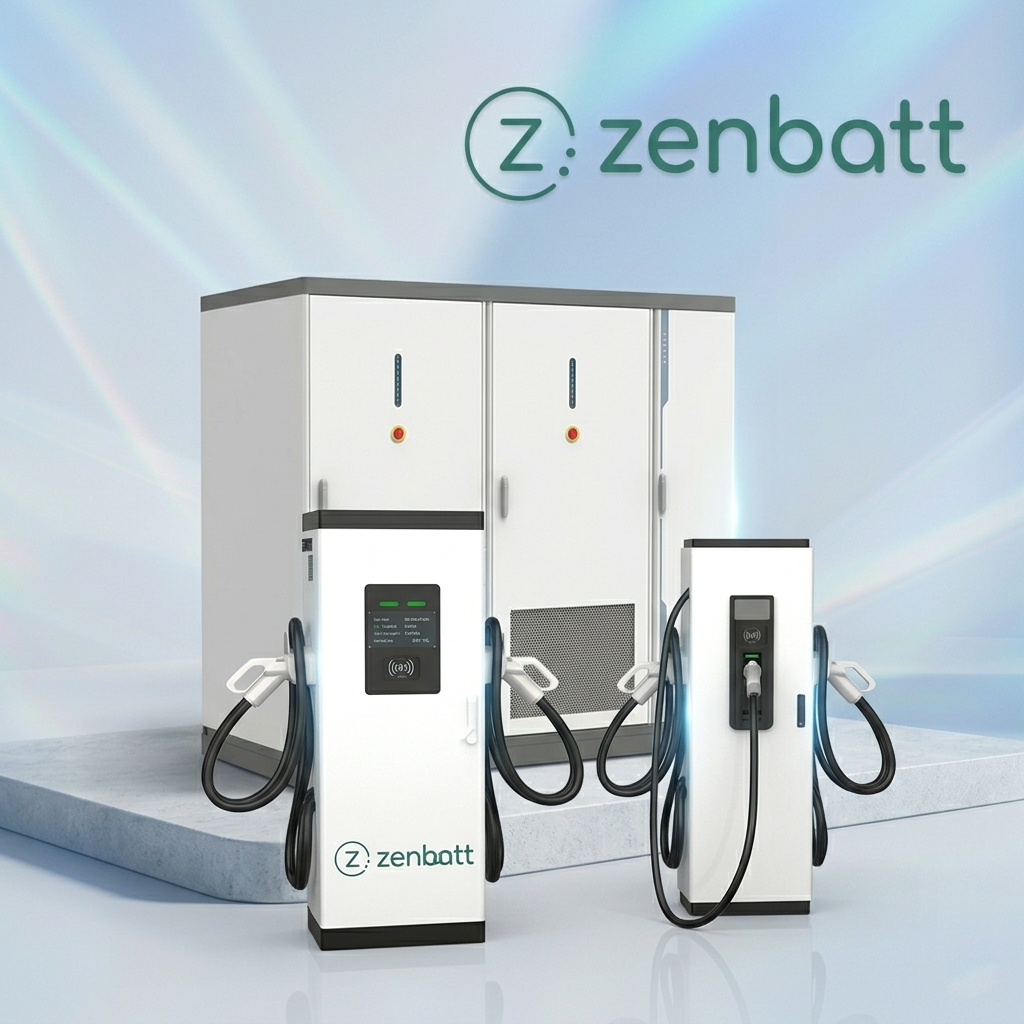

Liquid-Cooled Storage-to-EV Charging
-
⚡ Ultra-High Power Output: Delivers up to 480kW of charging power, supporting ultra-fast charging terminals including 1×480kW single-gun or multiple dual-gun configurations (3×160kW or 4×120kW).
-
🔋 Grid-Friendly Efficiency: Achieve 480kW charging with only 250kVA of transformer capacity. A single 800kVA transformer can support three Zenbatt stacks to provide a massive 1.4MW of charging power.
-
❄️ Advanced Liquid Cooling: Equipped with battery liquid cooling for precise thermal management, ensuring stable performance and an 8,000-cycle life even under heavy high-power usage.
-
🛡️ Utility-Scale Safety: Features an IP67-rated battery pack and system-wide fire suppression, designed for high-traffic public charging hubs and commercial fleet depots.
-
💰 Revenue-Ready Design: Optional 43″ advertising screen and integrated payment systems (Card/App/VIN) turn your charging hub into a profitable media and energy asset.
| Category | Parameter | Specification Details |
| 🔋 Battery (LFP) | Cell Type | LFP 314Ah (8,000 Cycles) |
| Capacity / Config | 261kWh / 1P52S | |
| Voltage Range | 728V ~ 936V | |
| Cooling Concept | Battery Liquid Cooling | |
| 🔌 Charging | Max. Charging Power | 480kW (Dynamic Switching) |
| Grid Requirement | Only 250kVA Transformer Capacity | |
| Terminal Options | 1×480kW (Single) / 3×160kW / 4×120kW | |
| ⚡ AC Side (PCS) | Rated Power | 250kW (2 * 125kW) |
| Grid Standard | 400V (360VAC ~ 440VAC) | |
| ☀️ PV Side | Max. Input Power / Current | 400kW / 549A |
| ⚙️ System | Interface | 43″ Ad Screen (Optional) / 10″ Touch Panel |
| IP Grade | IP54 (Machine) / IP67 (Battery Pack) | |
| Dimensions / Weight | 2650 × 1300 × 2250 mm / 4800kg | |
| Corrosion Resistance | C3 (Standard) / C5 (Coastal) |
