Empowering Energy Independence with Zenbatt All-in-One Systems
Advanced Hybrid Solutions for Commercial, Industrial, and Rural Applications. Hybrid Solar Storage System
Trusted Excellence
1. Why Choose Hybrid Solar Storage System?
Our systems integrate Power Conversion (PCS), Battery Management (BMS), Energy Management (EMS), and high-density Lithium-ion batteries into a single, sleek outdoor cabinet.
Seamless Transition
Guaranteed on/off-grid switching in under 20ms, ensuring your critical loads never lose power
High Efficiency DC-Coupling
Direct solar integration via high-efficiency MPPT controllers reduces conversion losses and simplifies installation
Intelligent Management
Cloud-integrated monitoring via 4G/WiFi/Ethernet with dedicated App support for real-time data

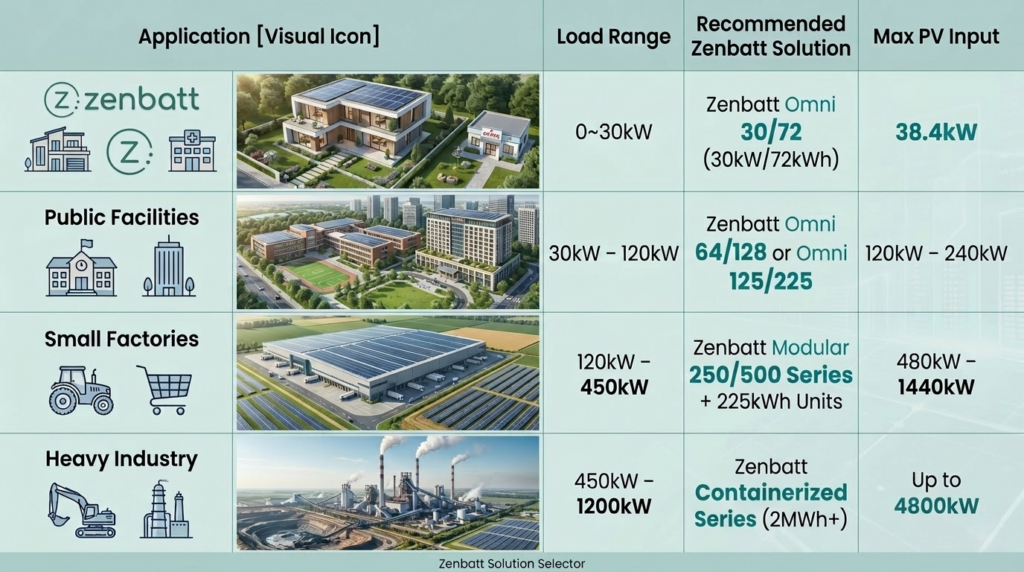

2. System Selection Guide
Find the right solution based on your average load and application.
Energy STorage solution
3. Core Product Lineup
A. Zenbatt Omni Series (Compact Cabinets)
Ideal for distributed commercial sites requiring a small footprint and fast setup.
Zenbatt Omni 64/128: 64kW AC Output | 128kWh Capacity | LFP 314Ah Cells
Zenbatt Omni 125/225: 125kW AC Output | 225kWh Capacity | High-density modular design
B. Zenbatt Modular & Containerized (MW-Scale)
For high-demand industrial power and grid-level support.
Zenbatt Power Inverters: 250kW / 500kW units, supporting parallel expansion for up to 4 units

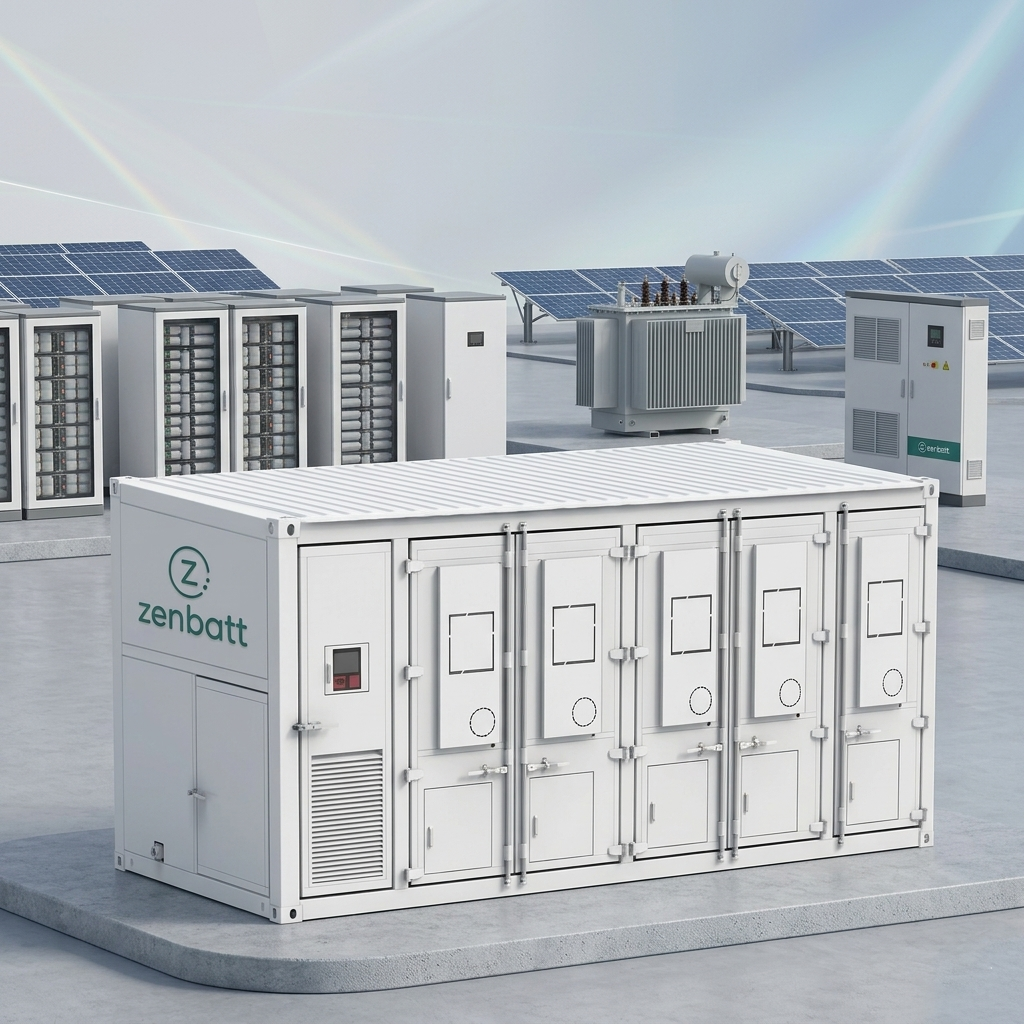

Zenbatt Container Storage: Up to 2570kWh per 20ft container with an 8000-cycle life LFP battery
C. Zenbatt High-Efficiency MPPT Controllers
Efficiency: Up to 97.5%.Flexibility: Outdoor IP66 rating with multiple MPPT trackers for complex rooftop arrays

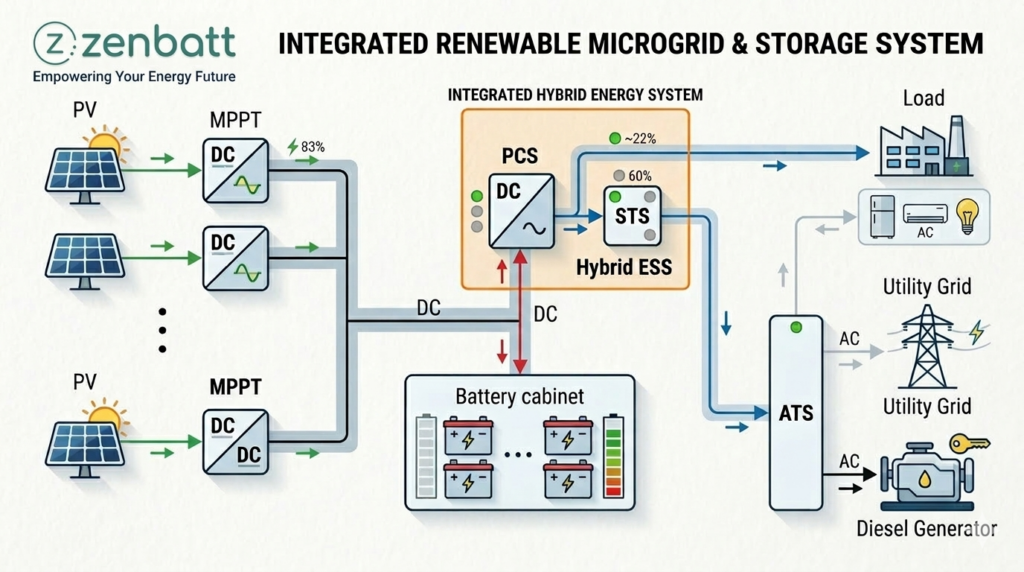

4. Advanced System Topology
Zenbatt solutions support multiple power sources simultaneously to ensure 100% uptime:
Solar PV: Primary green energy source.
Zenbatt ESS: Battery energy storage for peak shaving and backup.
Utility Grid: Supplemental power and grid-tie feedback.
Diesel Generator: Emergency backup through integrated ATS control.
Frequently Asked Questions
Find answers to commonly asked questions about our products and services.
1. What are the primary applications for Zenbatt’s All-in-One Energy Storage Systems?
Answer: Zenbatt ESS solutions are versatile and designed for diverse environments, including luxury villas, remote commercial sites, healthcare facilities, schools, and industrial plants. Our systems are particularly effective for areas with unstable grids or businesses looking to reduce electricity costs through peak shaving and increased self-consumption of solar energy.
2. How fast is the transition between grid-tied and off-grid modes?
Answer: Our systems feature a high-performance STS (Static Transfer Switch) that ensures a seamless transition in less than 20ms. This rapid switching guarantees that critical loads—such as medical equipment, data servers, and security systems—remain operational without interruption during a power outage.
3. Can Zenbatt systems integrate with existing diesel generators?
Answer: Yes. Zenbatt’s intelligent EMS (Energy Management System) supports multi-source integration. The system can coordinate between Solar PV, Battery Storage, the Utility Grid, and Diesel Generators. In off-grid scenarios, the ESS can automatically signal the generator to start when battery levels are low, ensuring 24/7 power reliability.
4. What type of battery technology does Zenbatt use, and what is the expected lifespan?
Answer: We utilize premium Lithium Iron Phosphate (LFP) 314Ah cells, known for their superior safety profile and thermal stability. Our battery modules are rated for over 6,000 to 8,000 cycles at 80% Depth of Discharge (DoD), providing a reliable service life of 10 to 15 years under standard operating conditions.
5. Is the system suitable for harsh outdoor environments?
Answer: Absolutely. Zenbatt outdoor cabinets are engineered with IP54/IP66 rated protection, making them resistant to dust, rain, and corrosion. Equipped with an intelligent air-cooling system and robust thermal management, our units maintain optimal performance even in extreme temperatures ranging from -20°C to 50°C.
6. Can I monitor and manage my energy consumption remotely?
Answer: Yes, every Zenbatt system is “Smart-Ready.” Users can monitor real-time energy production, storage levels, and consumption patterns through the Zenbatt Cloud Platform and mobile APP. The system supports multiple connectivity options, including 4G, WiFi, and Ethernet, allowing for remote diagnostics and firmware updates.
