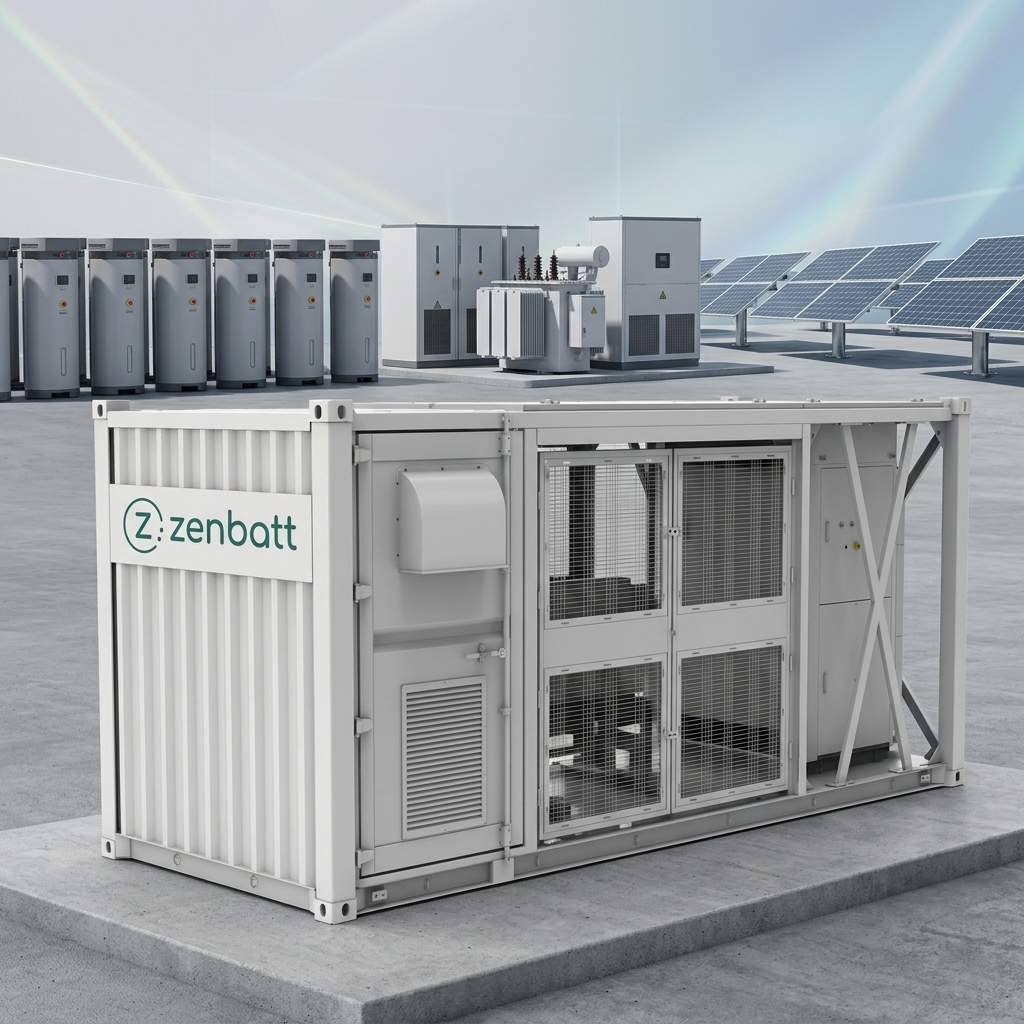

Zenbatt 2.5MW to 6.9MW Containerized VSG Hybrid System for Utility-Scale Power Stations, Utility-Scale VSG Hybrid System

Zenbatt Utility-Scale VSG Hybrid System | 2.5MW – 6.9MW Containerized Power Station Solution

Empowering the Grid with Intelligent Stability The Zenbatt Large-scale Hybrid System is engineered for the future of energy infrastructure. Utilizing advanced VSG (Virtual Synchronous Generator) Control, this system goes beyond traditional storage by emulating the characteristics of synchronous generators. It provides active grid support, autonomous voltage establishment, and dynamic response to frequency fluctuations. Available in standard 20-foot and 40-foot AC Containers, these units can be paralleled to form massive, station-level energy hubs capable of synchronized black starts and stable islanded operation. Utility-Scale VSG Hybrid System

Category: Tags: , , , , , , , , ,

Utility-Scale VSG Hybrid System

  • ⚡ Advanced VSG Control: Provides active grid support by emulating synchronous generator inertia. It autonomously establishes voltage and frequency, ensuring the highest level of grid stability.

  • 🔋 Flexible Containerized Scale: * 20ft Container: Options for 2.5MW (1000Vdc) or 3.45MW (1500Vdc).

    • 40ft Container: Options for 5MW (1000Vdc) or 6.9MW (1500Vdc).

  • 🔄 Seamless Multi-Unit Parallelism: Designed for massive scalability. Multiple AC containers operate in parallel as a unified VSG system to power utility-scale stations.

  • 🌑 Reliable Black Start: Supports multi-unit synchronized black starts and autonomous islanded operation, ensuring continuous power supply even during complete grid failure.

  • 🛡️ Utility-Grade Durability: Built for extreme environments with IP66 protection, C4/C5 corrosion resistance, and intelligent thermal energy management.

Category Parameter 20ft Unit (Single Inverter) 40ft Unit (Combined)
⚡ AC Side Rated Power Options 2500kW / 3450kW 5000kW / 6900kW
Max. Output Power 2750kW / 3795kW 5500kW / 7590kW
Rated Voltage 500V / 690V 500V / 690V
Power Factor -1 ~ 1 (Adjustable) -1 ~ 1 (Adjustable)
🔋 DC Side Voltage Range 750V~1000V / 1000V~1500V 750V~1000V / 1000V~1500V
Max. DC Current 2 * 1935A 4 * 1935A
⚙️ System Control Logic VSG Control / Black Start VSG / Multi-unit Parallel
IP Grade IP66 IP66
Anti-corrosion C3 (Standard) / C4 & C5 (Optional) C3 (Standard) / C4 & C5 (Optional)
Cooling Concept Intelligent Thermal Management Intelligent Thermal Management
Operating Temp -40°C ~ 60°C -40°C ~ 60°C
Dimensions (WDH) 1700 × 2633 × 1319 mm (Single) Standard Containerized
