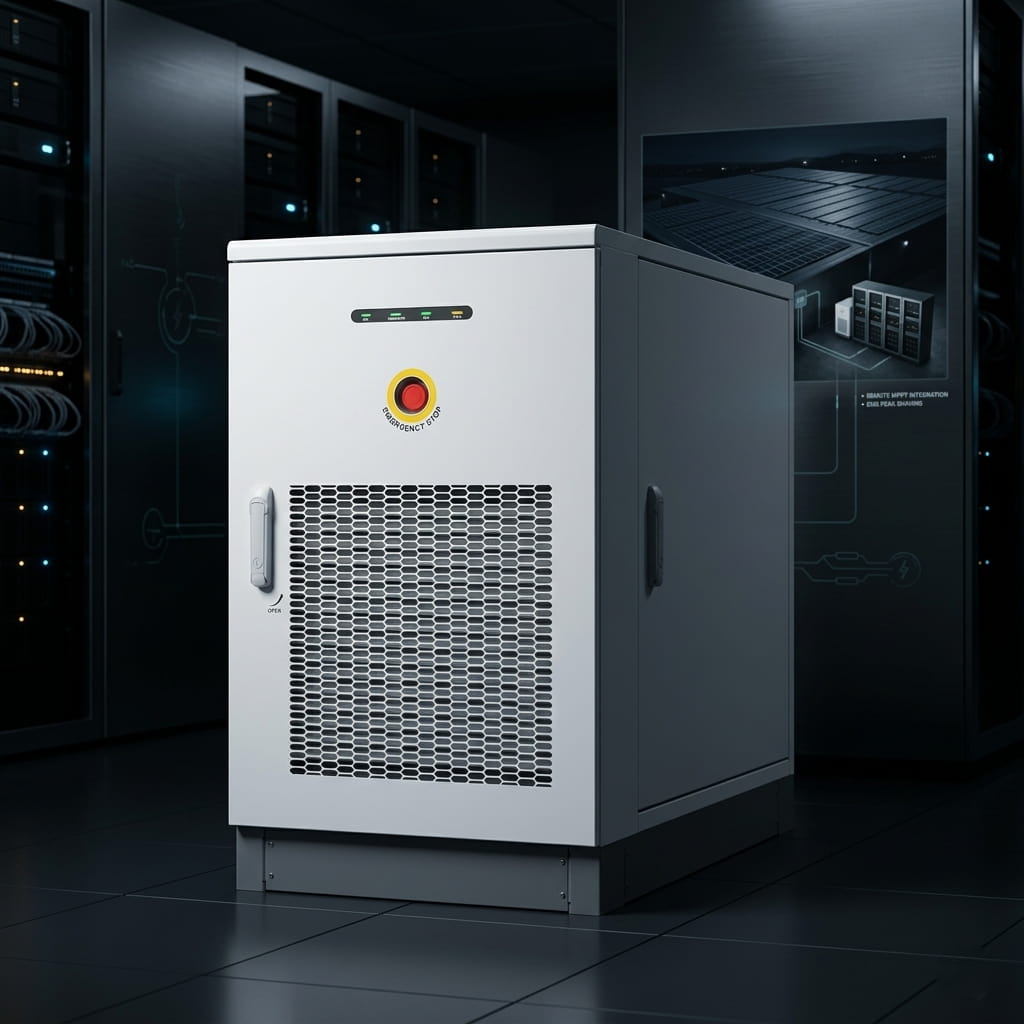

The 250kW hybrid inverter is a high-performance, grid-tied and off-grid bi-directional storage inverter designed for large-scale commercial and industrial (C&I) applications. By decoupling the MPPT to a remote stage, this system maximizes battery safety and inverter reliability while providing seamless transition for critical loads.
Core Advantages:
-
Enhanced Safety: Remote MPPT design minimizes heat generation near batteries, significantly increasing system reliability.
-
Smart Energy Management: Integrated EMS supports Peak Shaving, Load Priority, and Diesel Generator integration.
-
Ultra-Fast Response: Provides seamless <20ms backup power transition to protect critical industrial loads.
-
Grid Support: Supports VSG (Virtual Synchronous Generator) mode for better grid stability and demand response.
| Category | Parameter | Specification |
| DC Side (Battery) | Max. Input Voltage | 1000V |
| Max. PV Input Power | 500kW | |
| Max. Continuous Charge Current | 628A | |
| PCS Max. DC Current | 406A | |
| Full Load Voltage Range | 680 – 950Vdc | |
| Grid-Tied (AC) | Rated Grid Voltage | 3/N/PE, 230Vac/400Vac |
| Rated Power | 250kW | |
| Max. Continuous Output Current | 360A | |
| Rated Grid Frequency | 50/60Hz | |
| Off-Grid (AC) | Rated Output Voltage | 3/N/PE, 230Vac/400Vac |
| Rated Output Power | 250kW | |
| Max. Output Current | 360A | |
| Rated Frequency | 50/60Hz | |
| Short-term Overload Capacity | 1.5 x Rated @ 200ms (VSG Mode) | |
| System Data | Grid/Off-grid Switch Time | < 20ms |
| Max. Efficiency | 98.4% | |
| Ingress Protection | IP54 | |
| Dimensions (W x D x H) | 650 x 1050 x 1800 mm | |
| Weight | 450kg | |
| Communication Interfaces | WiFi / LAN / CAN / RS485 |
