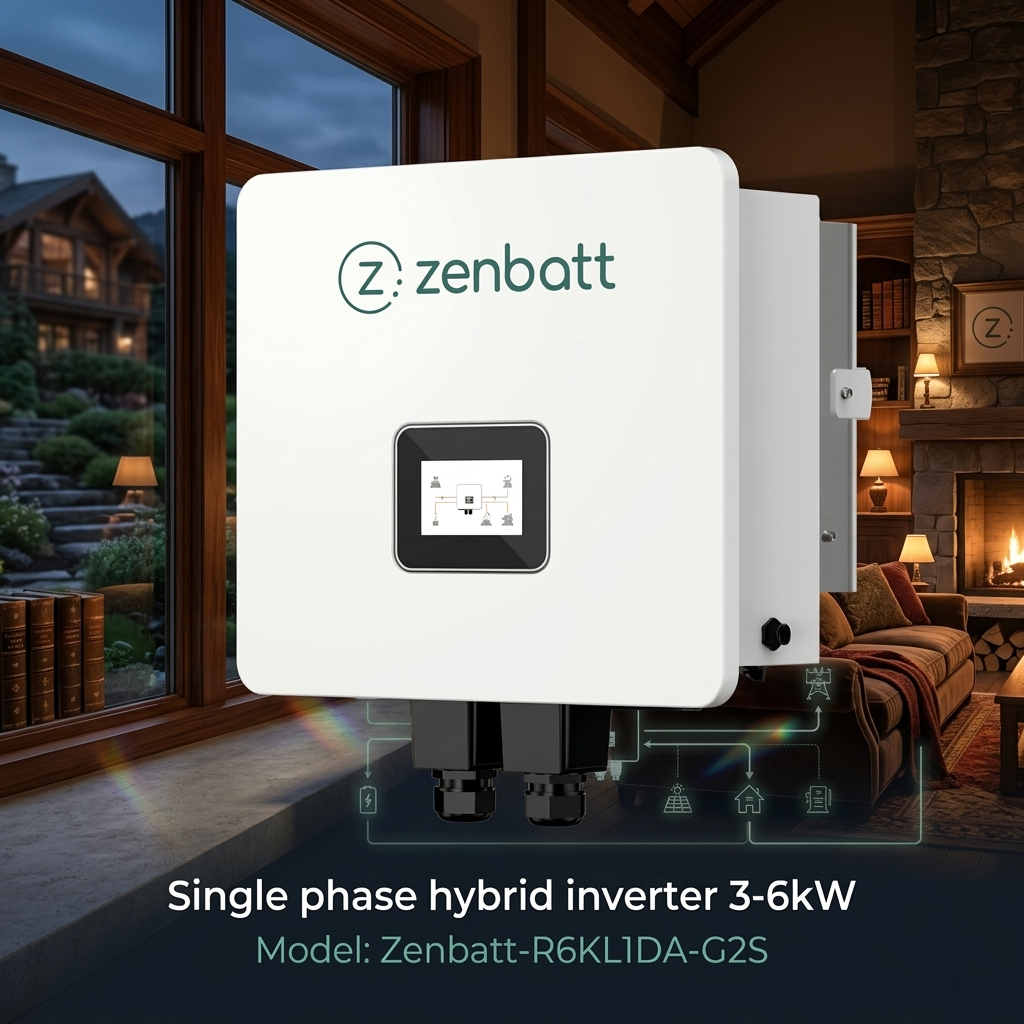

Zenbatt 3.68kW Residential Hybrid Inverter Single-Phase Hybrid Inverter for Residential Solar Storage Systems

Zenbatt Single-Phase 3.68kW Residential Hybrid Inverter Smart Home Energy Management

Power Your Home with Intelligence and Silence. The Zenbatt Single-Phase Hybrid Inverter series is the ultimate heartbeat for modern residential energy systems. Designed for homes looking to maximize self-consumption and ensure energy independence, this smart inverter seamlessly integrates solar power, battery storage, and grid connection.

With its ultra-quiet natural convection cooling and a sleek, compact footprint, it fits perfectly into any household environment. Whether you are looking to shave peak costs or need a reliable UPS-level backup during outages, Zenbatt delivers consistent, high-efficiency power you can trust. 3.68kW Residential Hybrid Inverter

Categories: , Tags: , , , , , , , ,
,
3.68kW Residential Hybrid Inverter

  • ⚡ Seamless Backup Transition: Features a backup switch time of < 20ms, providing uninterruptible power supply (UPS) protection for critical home appliances during grid failures.

  • 🔇 Whisper-Quiet Operation: Utilizing Natural Convection cooling technology, the system operates with noise emissions < 35dB, making it one of the quietest residential inverters on the market.

  • 🔋 Universal Battery Compatibility: Supports both Lithium-ion and Lead-acid batteries (48V low-voltage system), featuring self-adaptation to BMS via CAN communication for optimized battery health.

  • 📉 High Efficiency & Low Loss: Boasts a European efficiency of > 96.5% and a wide MPPT voltage range (100V-430V), ensuring maximum energy harvest even in low-light conditions.

  • 🛡️ Robust Protection: Built with IP65 ingress protection for indoor/outdoor installation, and integrated with DC Type III / AC Type III surge protection for total peace of mind.

  • 3.68kW Residential Hybrid Inverter
Category Parameter ZBR3K6 ZBR5K ZBR6K
PV Input Max. PV Input Power 5.4kW 7.5kW 9.0kW
Max. PV Input Voltage 550V 550V 550V
MPPT Voltage Range 100V – 430V 100V – 430V 100V – 430V
No. of MPPT Trackers 2 2 2
Battery Input Battery Type Lithium-ion / Lead-acid Lithium-ion / Lead-acid Lithium-ion / Lead-acid
Rated Battery Voltage 48V 48V 48V
Max. Charge/Discharge 72A / 72A 100A / 100A 120A / 120A
AC Output (Grid) Rated Output Power 3.68kW 5.0kW 6.0kW
Rated Grid Voltage 230V 230V 230V
Max. Efficiency 97.6% 97.6% 97.6%
Euro Efficiency > 96.5% > 96.5% > 96.5%
AC Output (Backup) Rated Output Power 3.68kW 5.0kW 6.0kW
Backup Switch Time < 20ms < 20ms < 20ms
THDu < 3% < 3% < 3%
General Data IP Grade IP65 IP65 IP65
Cooling Concept Natural Convection Natural Convection Natural Convection
Noise Emission < 35dB < 35dB < 35dB
Operating Temperature -25°C to 60°C -25°C to 60°C -25°C to 60°C
Dimensions (WDH) 476 × 215 × 510mm 476 × 215 × 510mm 476 × 215 × 510mm
Connectivity Wi-Fi / LAN Wi-Fi / LAN Wi-Fi / LAN
