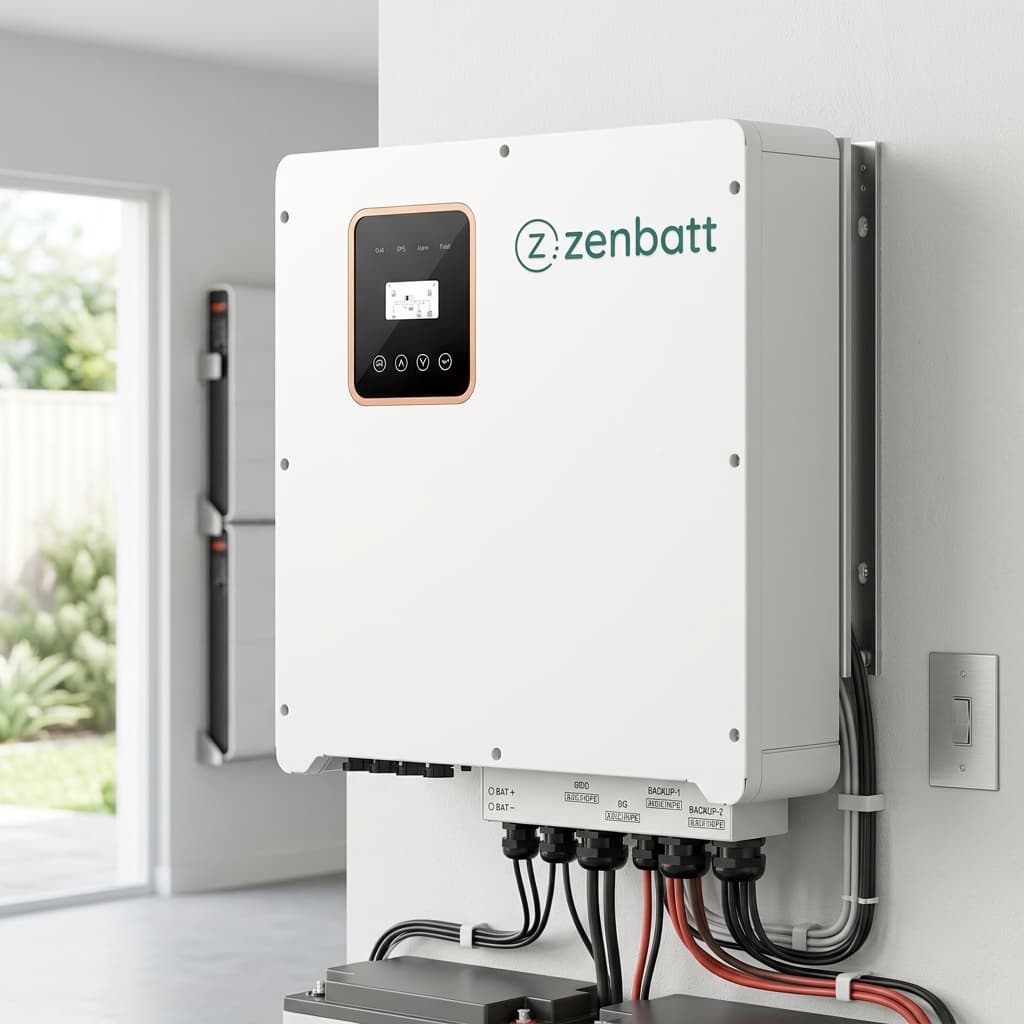

Zenbatt REVO 15kW Three Phase High Voltage Hybrid Inverter for Residential Solar Storage

Zenbatt Three-Phase High Voltage Residential Hybrid Inverter | 6kW – 15kW Smart Home Power Solution

A versatile and powerful three-phase high voltage hybrid inverter designed for modern smart homes. Featuring 100% unbalanced load output capability and a fanless natural cooling design, it seamlessly manages solar power, high-voltage battery storage, and grid connection for maximum energy independence. 15kw hybrid inverter

Category: Tags: , , , , , , , ,

Key Features 6-15kW hybrid inverterΒ

  • ⚑ 100% Unbalanced Load Output: Supports full power output to different phases independently, perfect for powering diverse home appliances without grid reliance.

  • πŸ”‡ True Silent Operation: Utilizes advanced natural cooling technology, operating at noise levels < 45dB, ideal for residential environments.

  • πŸ”‹ High-Voltage Battery Optimized: Designed for 150V-550V high-voltage LFP battery systems, offering higher system efficiency and support for full power discharging.

  • πŸ›‘οΈ Enhanced Power Support: Fully compatible with high-power solar components and supports both single-phase and three-phase loads seamlessly.

  • πŸ”„ Rapid Mode Switching: Features a backup switch time of < 10ms, providing uninterruptible power supply (UPS) class protection for critical appliances.

Category Parameter ZR6K-P ZR8K-P ZR10K-P ZR12K-P ZR15K-P
PV Input Max. PV Input Power 9kW 12kW 15kW 18kW 22.5kW
Max. PV Input Voltage 1000V 1000V 1000V 1000V 1000V
MPPT Voltage Range 160V – 850V 160V – 850V 160V – 850V 160V – 850V 160V – 850V
No. of MPPT Trackers 2 2 2 2 2
Battery Input Battery Type High Voltage Li-ion / Lead-acid Li-ion / Lead-acid Li-ion / Lead-acid Li-ion / Lead-acid Li-ion / Lead-acid
Battery Voltage Range 150V – 550V 150V – 550V 150V – 550V 150V – 550V 150V – 550V
Max. Charge/Discharge 4.4kW / 4.4kW 8.8kW / 8.8kW 11.0kW / 11.0kW 13.2kW / 13.2kW 16.5kW / 16.5kW
AC Output (Grid) Rated Output Power 6kW 8kW 10kW 12kW 15kW
Rated Grid Voltage 230/400Vac (Three Phase) 230/400Vac 230/400Vac 230/400Vac 230/400Vac
Unbalanced Load 100% Support 100% Support 100% Support 100% Support 100% Support
AC Backup (Off-Grid) Rated Output Power 6kW 8kW 10kW 12kW 15kW
Switching Time < 10ms < 10ms < 10ms < 10ms < 10ms
General Data Cooling Concept Natural Cooling Natural Cooling Natural Cooling Natural Cooling Natural Cooling
Noise Emission < 45dB < 45dB < 45dB < 45dB < 45dB
IP Grade IP65 IP65 IP65 IP65 IP65
Dimensions (WDH) 566 Γ— 219.5 Γ— 593.5mm 566 Γ— 219.5 Γ— 593.5mm 566 Γ— 219.5 Γ— 593.5mm 566 Γ— 219.5 Γ— 593.5mm 566 Γ— 219.5 Γ— 593.5mm
